Small diameter (3.0/3.9 mm) cannulated screws for small bone fractures, such as scaphoid fractures, and arthroscopic procedures. An alternative for those surgeons who prefer to use a cannulated screw in conjunction with an external alignment guide system, or who are interested in primary internal fixation for certain acute fractures using minimally invasive techniques.
Set (1152-90) includes various sizes of cannulated screws, instrumentation and sterilization case:
|
Catalog # |
Description |
| 1152-04 | Flat Depth Gauge |
| 1152-52 | Free-Hand Guide Insert Sleeve |
| 1152-71 | OCD Obturator |
| 1152-70 | OCD Cannula |
| 1152-06 | Alignment Guide |
| 1152-55 | Free Hand Depth Gauge |
| 1152-50 | Guide Wires (3) |
| 1152-02 | Cortical Broach |
| 1152-60 | Sleeves (2) |
| 1154-90 | Modular Handle |
| 1152-01 | Driver |
| 1152-05 | Tap |
| 1154-10 | Trephine |
| 2313-11 | Screw Forceps |
| 1152-13 | Cannulated Step Drill Shaft |
| 1152-09 | Pencil-End Brush |
| 1152-08 | Small-Cannula Cleaner |
| 1152-012 | Cannulated Bone Screw, 0.47" (12 mm) (2) |
| 1152-014 | Cannulated Bone Screw, 0.55" (14 mm) (2) |
| 1152-016 | Cannulated Bone Screw, 0.63" (16 mm) (4) |
| 1152-018 | Cannulated Bone Screw, 0.71" (18 mm) (4) |
| 1152-020 | Cannulated Bone Screw, 0.79" (20 mm) (4) |
| 1152-022 | Cannulated Bone Screw, 0.87" (22 mm) (4) |
| 1152-024 | Cannulated Bone Screw, 0.94" (24 mm) (4) |
| 1152-026 | Cannulated Bone Screw, 1.02" (26 mm) (4) |
| 1152-028 | Cannulated Bone Screw, 1.1" (28 mm) (4) |
| 1152-030 | Cannulated Bone Screw, 1.18" (30 mm) (4) |
| 1152-95 | Case |

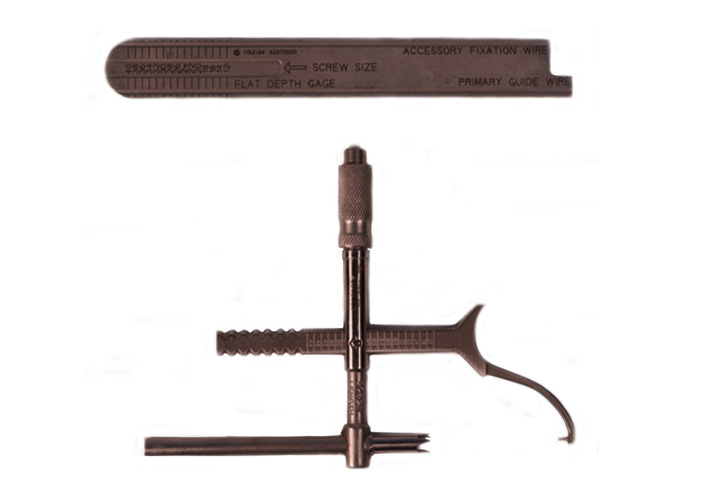

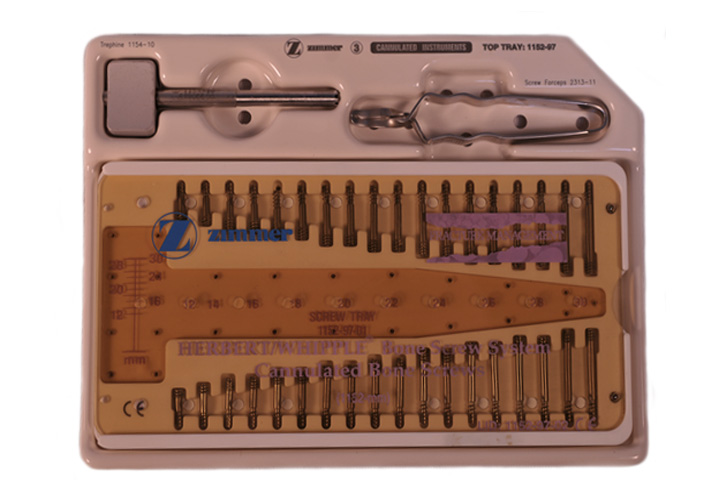

Close-up examples of instruments (Flat Depth Gauge, top, and Alignment Guide, middle) and Screw Tray (bottom) shown below.
Trials available.
Photo is representative—please contact your sales rep for more complete details.
