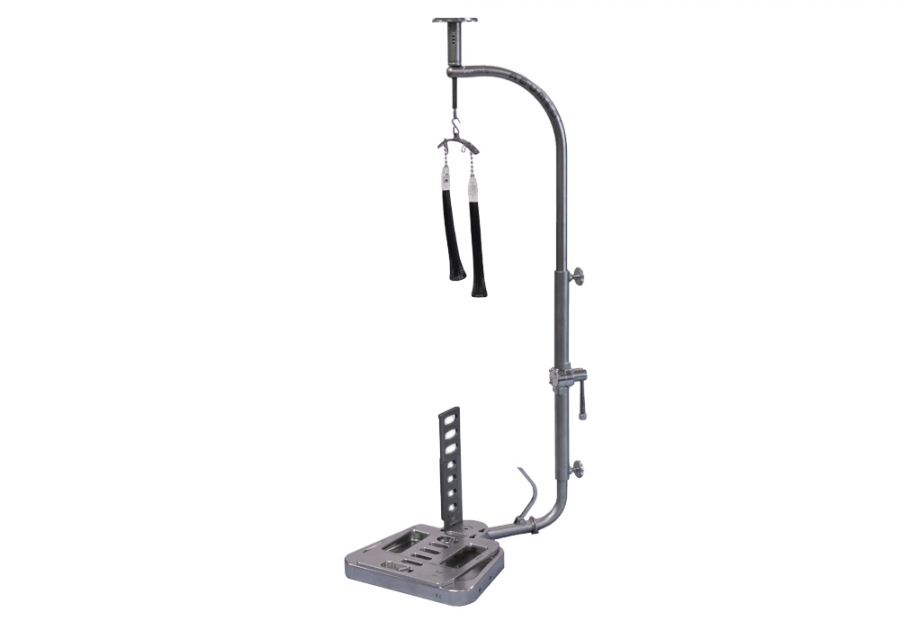

Acumed Arc Wrist Tower

Additional Info

  • Unit of Measurement: Each
  • Catalog Number: 10100000

Traction tower designed to provide stable traction of the patient’s forearm and hand and to allow unrestricted access to the wrist during arthroscopic and fracture-reduction procedures.



Features include:

  • Support arm swivels 180-degrees, facilitating fluoroscopic imaging from any angle
  • Provides traction in vertical postion for wrist arthroscopy
  • Provides traction in horizontal position for distal radius and other hand/wrist fractures
  • Stabilizes forearm, essentially freeing a pair of hands in the OR



Arc Wrist Tower (10100000) includes the following:



Catalog # Description
10100016 Spring Scale
10100017  Finger Trap Bar w/ S-Hook
10100015 Upper Arc
10150143  Rosette Knob (2)
10100019
Sliding Forearm Support
10100013   Pivot Joint Assembly
10100010  Base
10100018 Base Handle (2)
10100014 Wrist Joint Assembly
10150102  Upper Arm Plate
10170060 Single Use Arm Strap Set (2- 24", 1- 36")
10100002/3 Sterilization/Storage Trays



Includes set of finger traps (S, M, L, or XL).

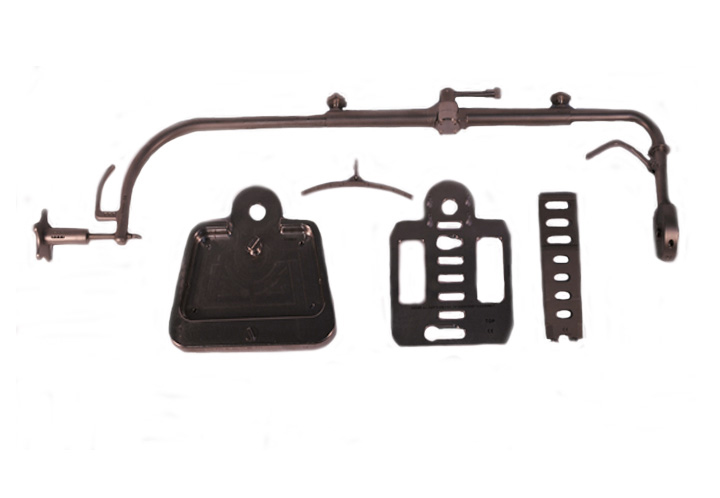

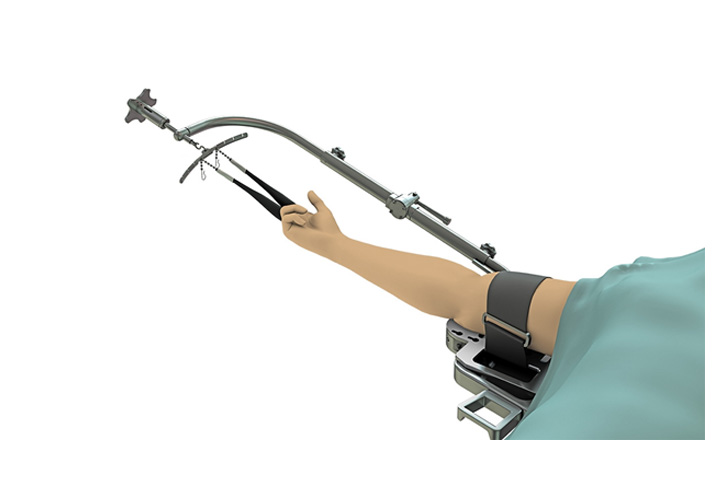

Components and example of traction set-up shown below.

AcumedWristTower2NoHandles  AcumedWristTower3



Replacement Arm Straps (10170060) and Finger Traps also available.



We repair non-working holders/positioners. CLICK HERE for repair form.



We also offer trade-ins for excess equipment.  Please contact us!



Trials available.



Acumed is a registered trademark of that corporation.
