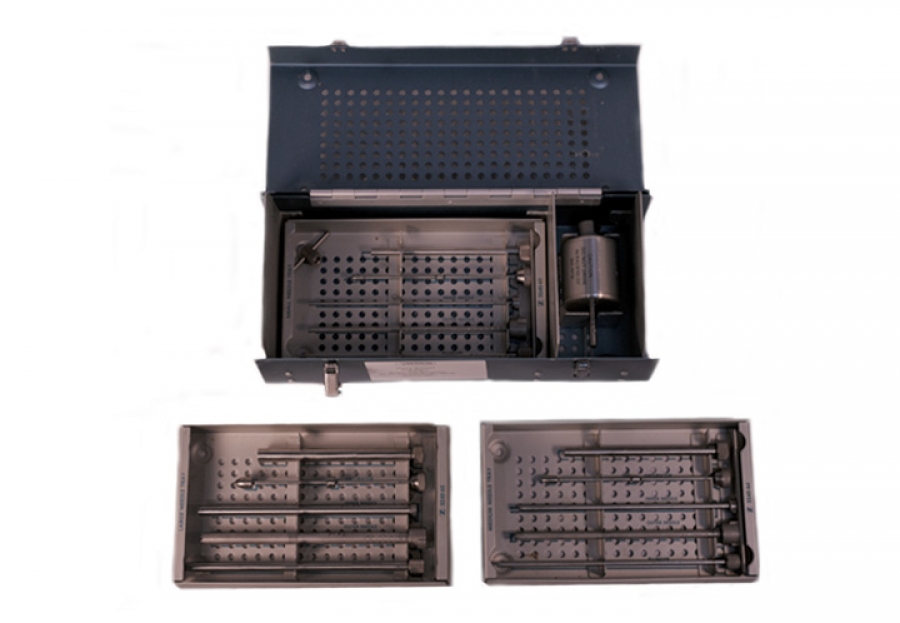

Unique counter-rotating instrument design with saw-like teeth for conducting needle biopsy. Includes small, medium and large sizes of each component:
Features include:
- Stainless steel construction
- Needles composed of inner and outer tubes that telescope together and act as scissors when passing through the lesion or bone
- Plungers used to push the tissue sample core of the central canal of the instrument
- Cannulas inserted through soft tissue near the lesion to provide safe entry pilot for the biopsy needle
- Obturators inserted through Cannulas to minimize trauma when Cannula is advanced
- Driver/Gearbox Assembly designed to use rotational power of your power drill to provide counter-rotation of the cutter tubes
|
Catalog # |
Description |
| 3240-01 | Driver/Gearbox, 300 RPM Max. |
| 3240-31 | Small Cannula |
| 3240-41 | Small Obturator |
| 3240-11 | Small Inner & Outer Needle |
| 3240-21 | Small Plunger |
| 3240-32 | Medium Cannula |
| 3240-42 | Medium Obturator |
| 3240-12 | Medium Inner & Outer Needle |
| 3240-22 | Medium Plunger |
| 3240-33 | Large Cannula |
| 3240-43 | Large Obturator |
| 3240-13 | Large Inner & Outer Needle |
| 3240-23 | Large Plunger |
| 3240-62 | Case |

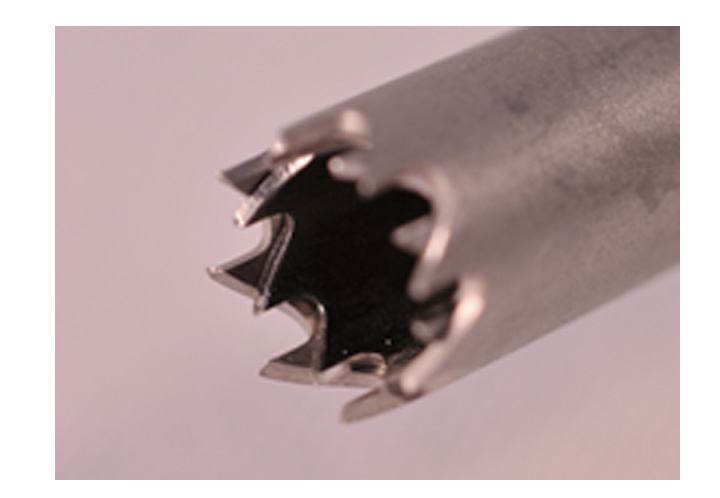

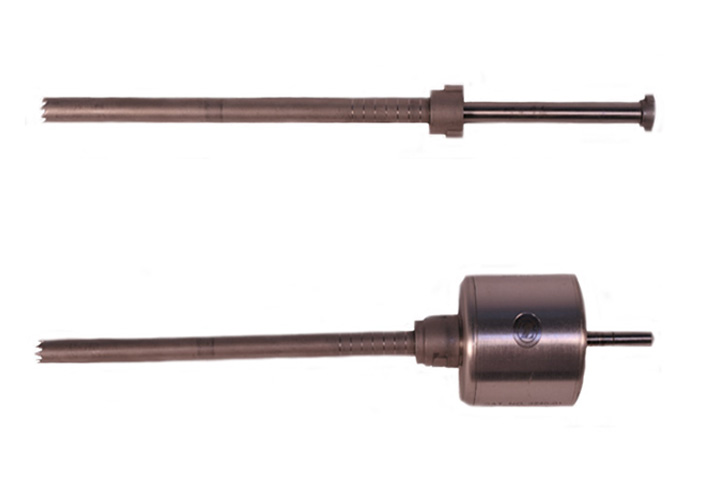

Examples of instruments shown below (telescoped inner and outer needle, needles attached to gearbox, and close-up of needle cutter tube teeth, top to bottom).
Trials available.
Photo is representative—please contact your sales rep for more complete details.
