Whether you need individual pins, or a complete Knowles Pin Set. Our Sales Representatives at A-Z Ortho can help you get what you need!

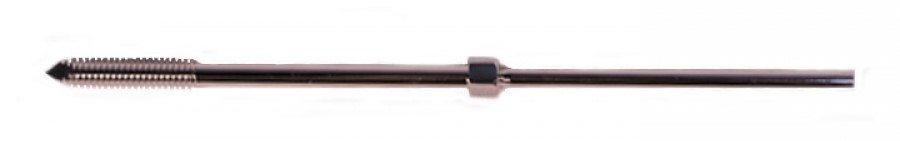

For percutaneous pinning of the reducible intracapsular femoral neck fractures. Percutaneous pinning reduces the possibility of mortality, morbidity, and infection. The threads engage the cancellous and subchondral bone of the femoral head. When a distal nut is used, compression can be achieved between the fragments as the pin employs the lag screw principle. The distal portion of the pin is broken off at the scored line. These pins are not recommended for comminuted fractures.
Features include:
- Made of stainless steel
- Trocar point, hexagonal collar
- Thread length: 1 1/4" (32 mm)
- Break-off shaft length: 2 7/8" (73 mm)
- Thread diameters: 5/32" (4.0 mm) and 3/16" (4.8 mm)
- Break-off shaft diameter: 0.132" (3.4 mm)
- Shaft diameters: 1/8" (3.2 mm) and 5/22" (4.0 mm)

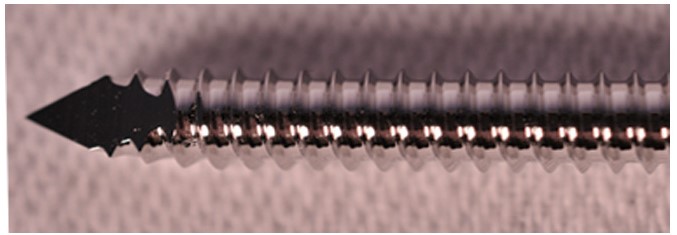

Threaded end with trocar point shown below.

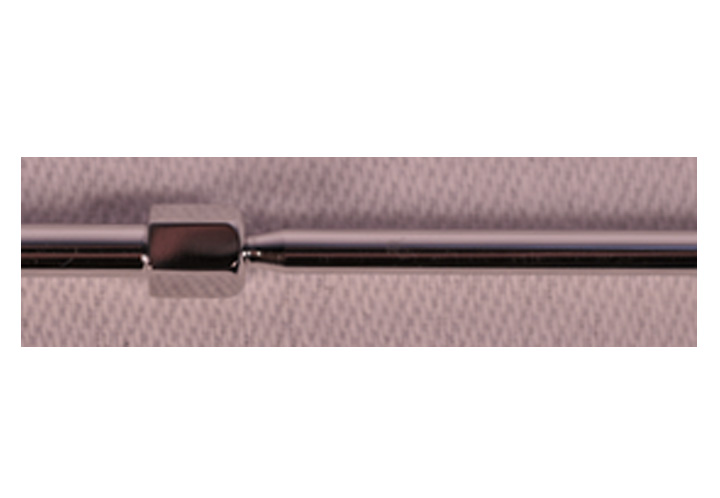

Break-off shaft shown below.
Recommended Inserters:
195-02 Cannulated Wrenches
1085-18 Jacobs Chuck / Trinkle Shank - 1/4" (6.4 mm)

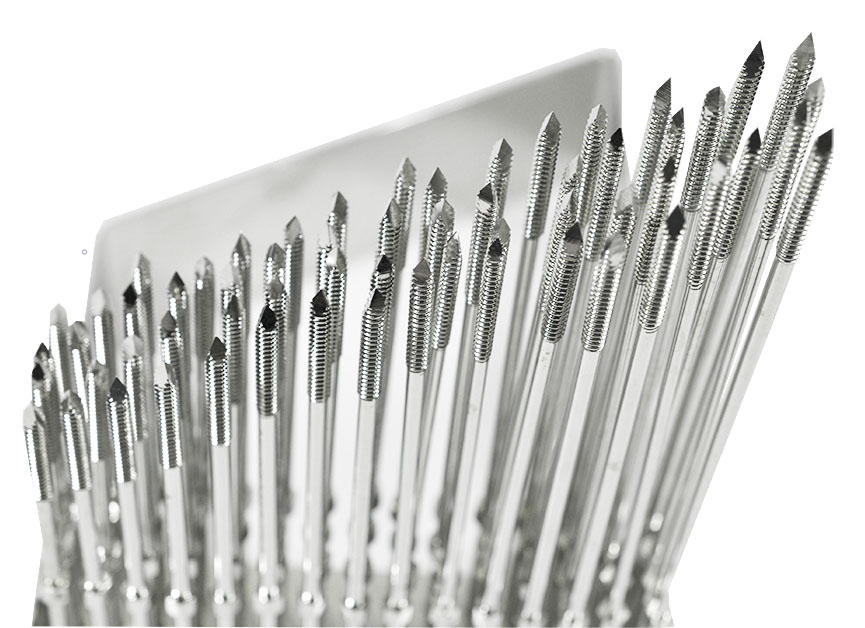

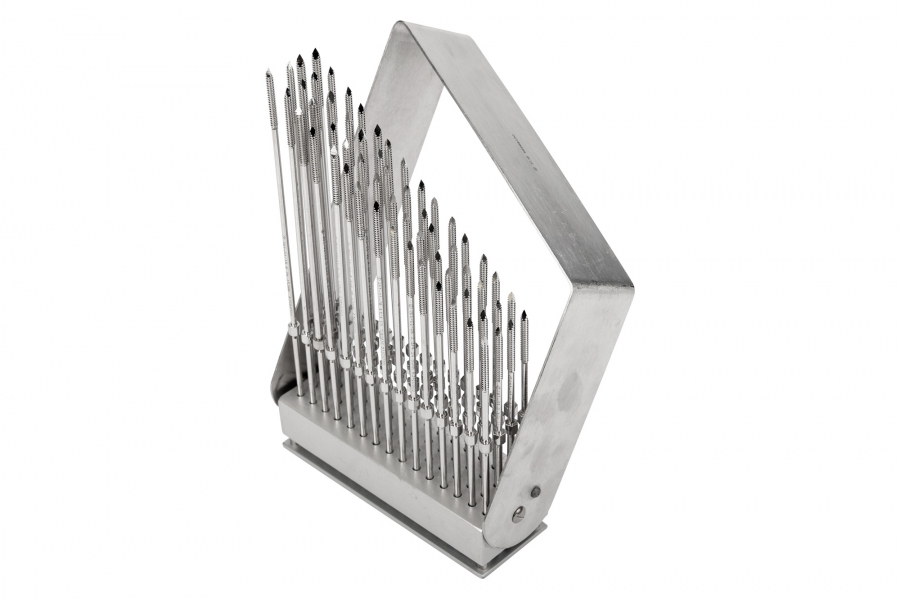

Recommended Rack 1016, shown below with all the pins.
| 5/32 in. (4.0 mm) threaded diameter | 3/16 in. (4.8 mm) threaded diameter | |||
| 1/8 in. (3.2 mm) shaft diameter | 5/32 in. (4.0 mm) shaft diameter | |||
| Catalog # |
Length | Catalog # |
Length | |
| 281-01-01 | 2.5" (64 mm) |
281-02-01 | 2.5" (64 mm) | |
| 281-01-02 | 2.75" (70 mm) |
281-02-02 | 2.75" (70 mm) | |
| 281-01-03 | 3" (76 mm) |
281-02-03 | 3" (76 mm) | |
| 281-01-04 | 3.25" (83 mm) |
281-02-04 | 3.25" (83 mm) | |
| 281-01-05 | 3.5" (89 mm) |
281-02-05 | 3.5" (89 mm) | |
| 281-01-06 | 3.75" (95 mm) |
281-02-06 | 3.75" (95 mm) | |
| 281-01-07 | 4" (10.2 cm) |
281-02-07 | 4" (10.2 cm) | |
| 281-01-08 | 4.25" (10.8 cm) |
281-02-08 | 4.25" (10.8 cm) | |
| 281-01-09 | 4.5" (11.4 cm) |
281-02-09 | 4.5" (11.4 cm) | |
| 281-01-10 | 4.75" (12.1 cm) |
281-02-10 | 4.75" (12.1 cm) | |
| 281-01-11 | 5" (12.7 cm) |
281-02-11 | 5" (12.7 cm) | |
| 281-01-12 | 5.25" (13.3 cm) |
281-02-12 | 5.25" (13.3 cm) | |
| 281-01-13 | 5.5" (14 cm) |
281-02-13 | 5.5" (14 cm) | |
| 281-01-14 | 5.75" (14.6 cm) |
281-02-14 | 5.75" (14.6 cm) | |
| 281-01-15 | 6" (15.2 cm) |
281-02-15 | 6" (15.2 cm) | |
Zimmer is a registered trademark of that corporation.
